Suitable for 12-16T excavators——

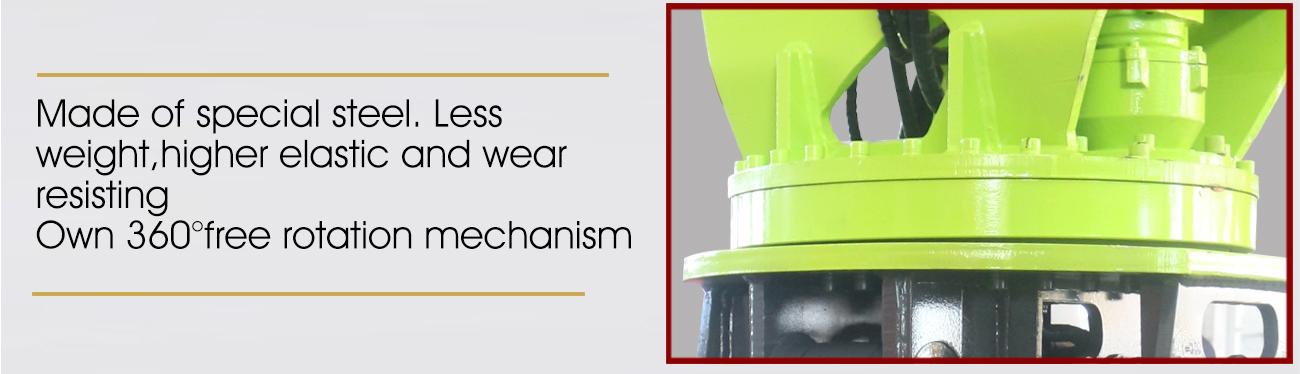

-The wide opening width with light weight , not only outstanding performance in handing the iron bar but also maximize the operation efficiency with light weight.-Unlimited clockwise and anti-clockwise 360 rotatable.
-Special designed swing bearing for durability and big cylinder for more power.
-Check valve is embedded for better safety shock value enclosed for better safety from damage.

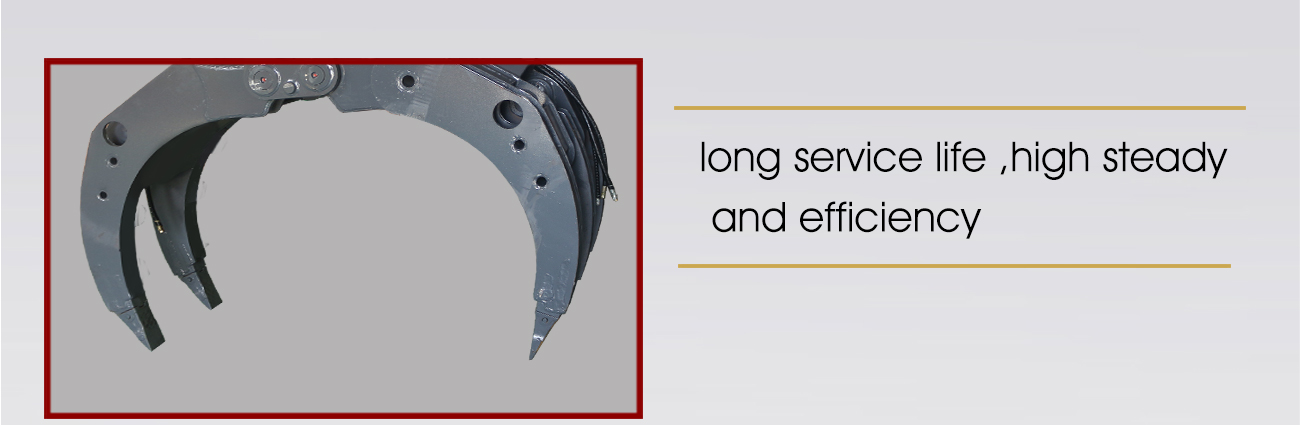

-Wear resistant special solid steel is used and no extra reinforcement is requirement.
-Flexible choices dependent on job environment Operator can control the rotating speed.

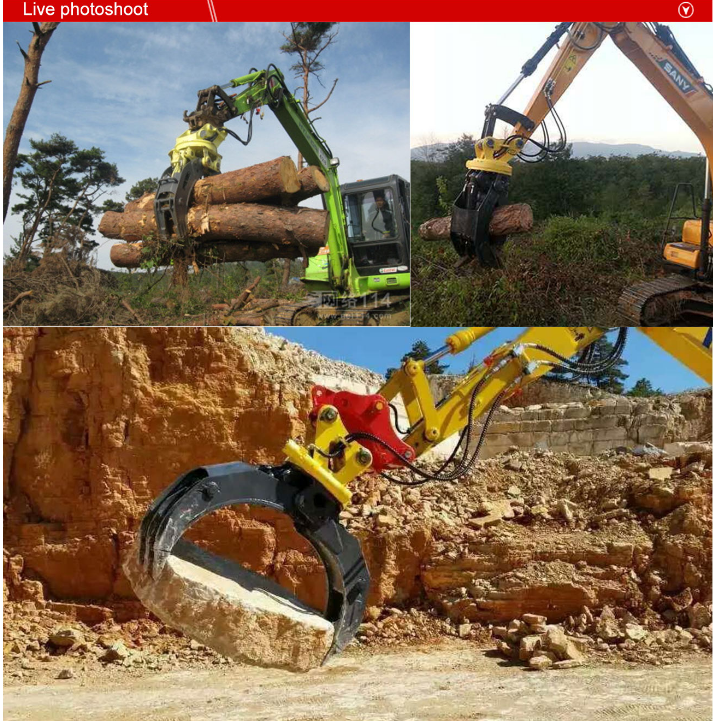

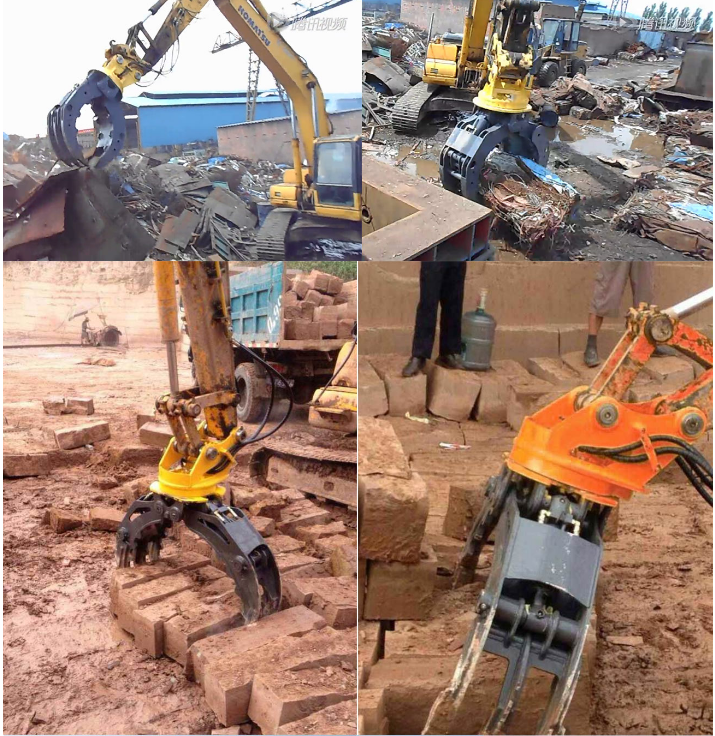

Versatile applications including handing of stones,wood,cane,pipes,disposable waste,land-scaping works and many others.
Versatile applications including handing of stones,wood,cane,pipes,disposable waste,land-scaping works and many others.
| Module | BYKL 03 | BYKL 04 | BYKL 06 | BYKL 08 | BYKL 10 | BYKL 14 | BYKL 20 |
| Weight(kg) | 320 | 390 | 740 | 1380 | 1700 | 1900 | 2100 |
| Max jaw opening(M/m) | 1300 | 1400 | 1800 | 2300 | 2500 | 2500 | 2700 |
| Oil Pressure(kg/cm²) | 110-140 | 120-160 | 150-170 | 160-180 | 160-180 | 180-200 | 180-200 |
| Operating flux(kg/cm²) | 170 | 180 | 190 | 200 | 210 | 250 | 250 |
| Cylinder Volume(L/min) | 30-55 | 50-100 | 90-110 | 100-140 | 130-170 | 200-250 | 250-320 |
| Suitable excavator(Ton) | 4×2 | 4.5×2 | 8.0×2 | 9.7×2 | 12×2 | 12×2 | 14×2 |
| Applicable Excavator (Ton) | 4-6 | 7-11 | 12-16 | 17-23 | 24-30 | 31-40 | 41-50 |
